What is a Solar Gateway?

A Gateway for solar panels, serves as a bridge between your solar hardware and software, acting as the central communication and energy management hub for your entire solar PV system. It seamlessly connects your solar panels, battery, consumer unit, and the grid, enabling real-time monitoring and control. As the brains of the operation, the gateway makes your solar system smart, responsive, and easy to manage – anytime, from anywhere.

What is does a Solar Gateway Do?

A Solar Gateway serves many purposes:

A solar gateway provides connectivity between the hardware of your system and the monitoring platform.
It allows your to monitor the flow of energy between your solar panels home, battery and the grid via mobile/web interfaces.
It sends alerts for any issues detected within your system for simply management.
With this real-time information at your fingertips, you can then make informed decisions about how to manage your home’s energy.

It automatically detects grid failures and seamlessly switches your home to back-up mode.
The gateway disconnects your home from the grid during an outage, protecting both your home and utility workers.
Whereas other solar systems, simply supply an Emergency Power Supply limited by the size and capabilities of the installed Solar Inverter, a solar gateway offers full home back up for complete peace of mind and energy independence.

The Gateway tells your solar battery what to do, controlling when your battery both charges and discharges.

Where does the Gateway need to be installed?

A solar gateway must be installed between your meter and main consumer unit, within 3 metres. Beyond this distance, additional electrical upgrades will be required.

The Best Gateways for Solar Panels

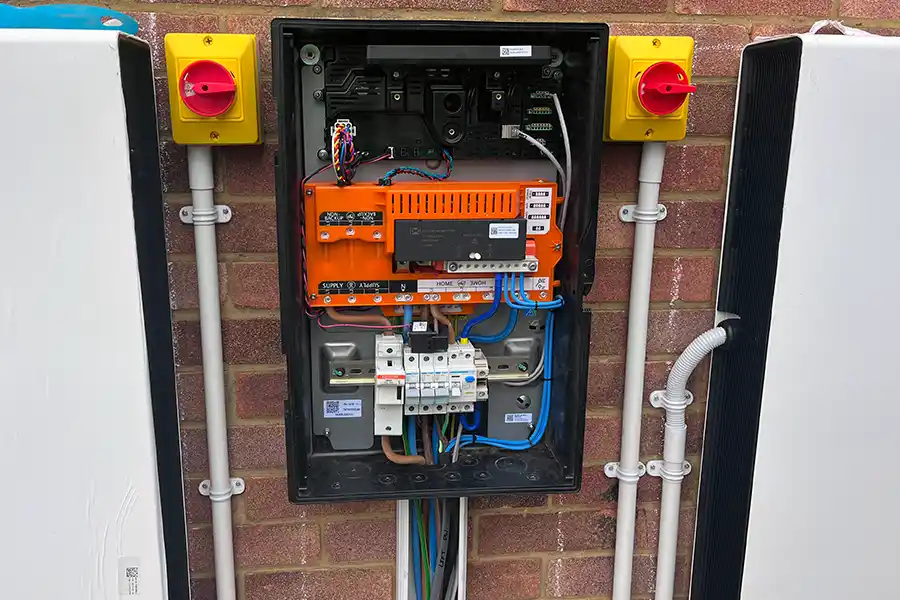

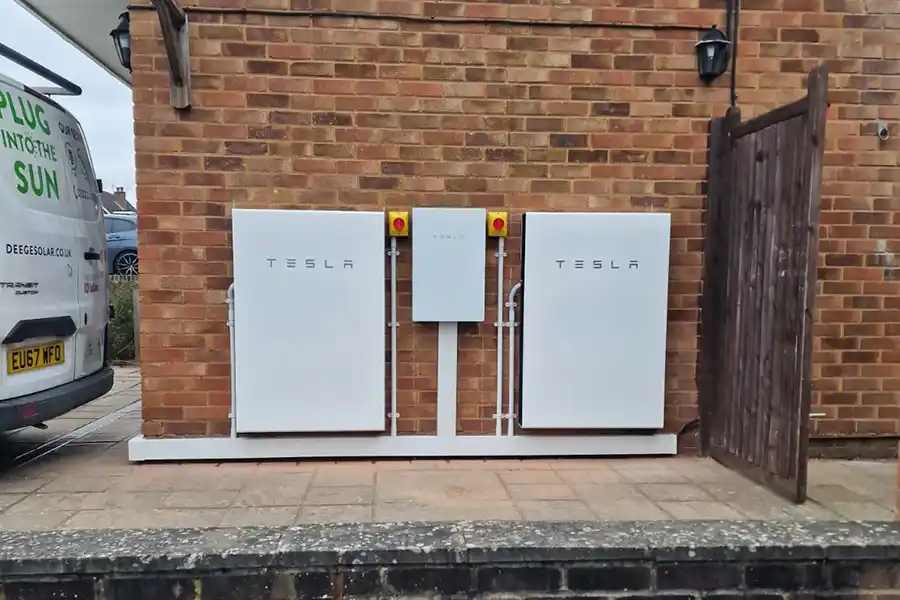

As pioneers of the solar gateway, Tesla has made the Gateway an essential component of any Powerwall system. A complete Tesla Powerwall setup includes at least one battery and the Backup Gateway 2, which provides intelligent energy management and monitoring for solar self-consumption, time-based control, and backup functionality. The Tesla Gateway manages the system’s connection to the grid, automatically detecting outages and enables a seamless transition to backup power. When installed with a main circuit breaker, it can be positioned at the service entrance, and with the optional internal panel board, it can also function as a load centre. The Backup Gateway 2 communicates directly with the Powerwall battery, allowing users to monitor energy usage and manage backup reserves in real-time via the Tesla app on any mobile device.

Key Features of the Tesla Gateway

Requires the installer to build their own switch gear inside the gateway so that every project is truly bespoke.
Comes with 10 Years Warranty.
Dimensions - 660 mm x 411 mm x 149 mm.
Supports up to 10 AC-coupled Powerwalls.
Connects via Ethernet or Wi-Fi.

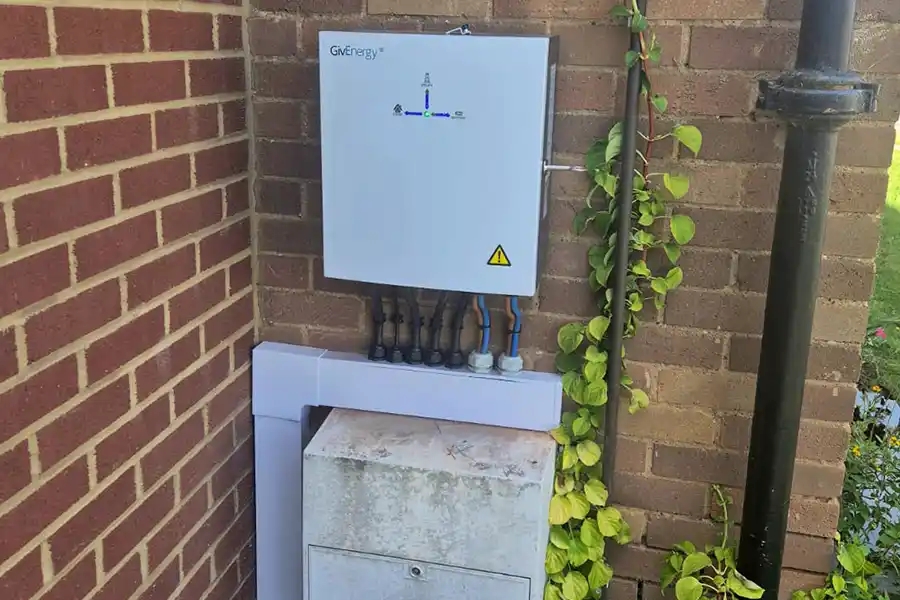

The GivEnergy Gateway, also known as the Giv-Gateway, is the backup interface for the GivEnergy All-in-One battery system. It plays a crucial role in providing seamless switching between the grid and battery, ensuring your home or business remains powered at all times. It also serves as a vital link for your solar PV system, allowing it to safely generate energy even without a grid supply.

When paired with the All-in-One system, the Giv-Gateway enables full-home backup capability, with the level of backup dependent on the model selected. This makes it an essential component for anyone seeking reliable, uninterrupted energy security.

Key Features of the Givenergy Gateway

Nominal Power Capacity of 18.4kW
Includes built-in connection points for an EV Charger and any existing solar panel systems.
A simple, quick installation thanks to a preinstalled meter.
Features a 30mA RCD, this is a bit limiting as most inverters require 100mA.

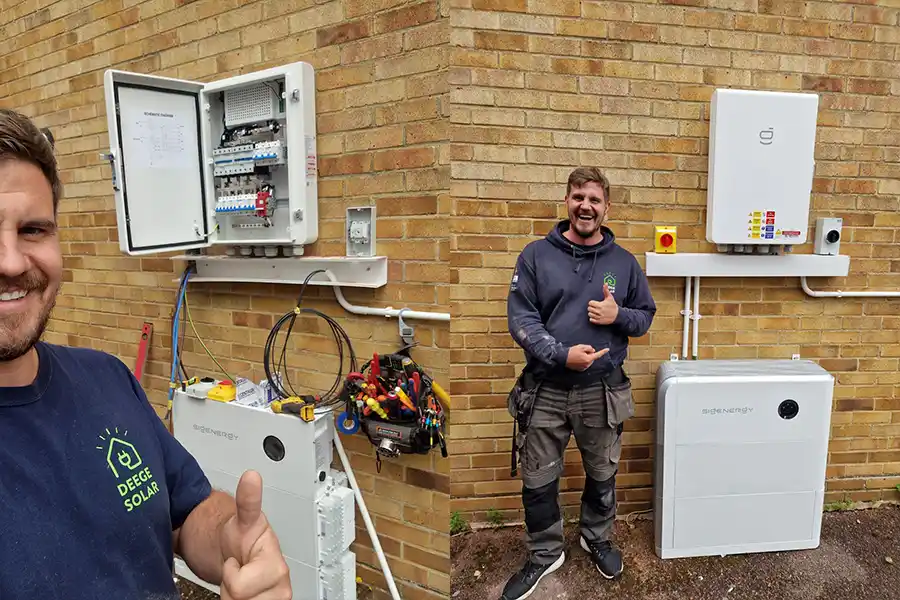

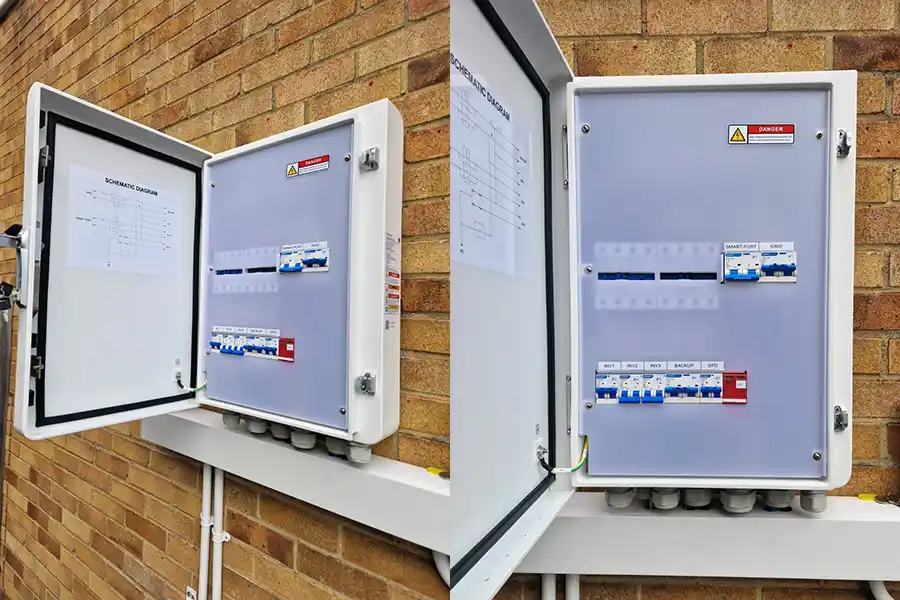

When paired with the SigenStor battery system, the Sigenergy Gateway provides intelligent, AI-enhanced energy management and monitoring. It automatically detects power outages and ensures a seamless transition to backup power, keeping essential loads running without interruption. Thanks to Sigenergy’s patented power control algorithm, the system delivers a true 0ms load-side disruption, ensuring an instant switchover to your solar and battery system so smooth, you won’t even notice a power cut. With the mySigen App, users can monitor energy usage and control power flow in real time.

The Sigen Gateway is available in a range of models, from the Sigen Gateway Home, which supports a single SigenStor, to the Sigen Gateway C1200, which can handle up to 50 parallel-connected SigenStor units. Sigenergy is currently the only brand offering such a broad selection of solar gateways, ensuring their system can meet a wide variety of backup power needs with reliable and scalable energy security.

Key Features of the Sigenergy Gateway

0 m/s change over speed
24/7 Outage Protection
Works with diesel generators and Air Source Heat Pumps thanks to the integrated smart port.
Supports 2-Wire Start-up
＜ 25dB quiet operation
Industry leading 350 ms reverse power flow protection.
Support a Nominal AC Power capacity from 12 kW to 1.2 MW
A minimum of 3 Inverter/ Generator ports available.

What is the main purpose of a Gateway for Solar Panels?

Thinking about getting solar panels installed and wondering, “Do I need a solar gateway?”

The answer depends on your needs.

Do you live in a remote area where grid outages are common?
Do you want full home backup for greater energy independence?
Do you rely on critical equipment for example servers or medical devices, that must stay powered at all times?

If you answered yes to any of the above, then a solar gateway could be a valuable addition to your system. If you’re a UK homeowner or business and have more questions about solar gateways, feel free to get in touch with our team of award-winning solar panel installers below, we’re more than happy to help.
